Panasonic TM G3 Series

Panasonic TM G3 Series

Combination with Full Digital Welding Power Source Achieves Stable and High Quality Welding

Advanced Hardware and Software that drives Improved Performance!

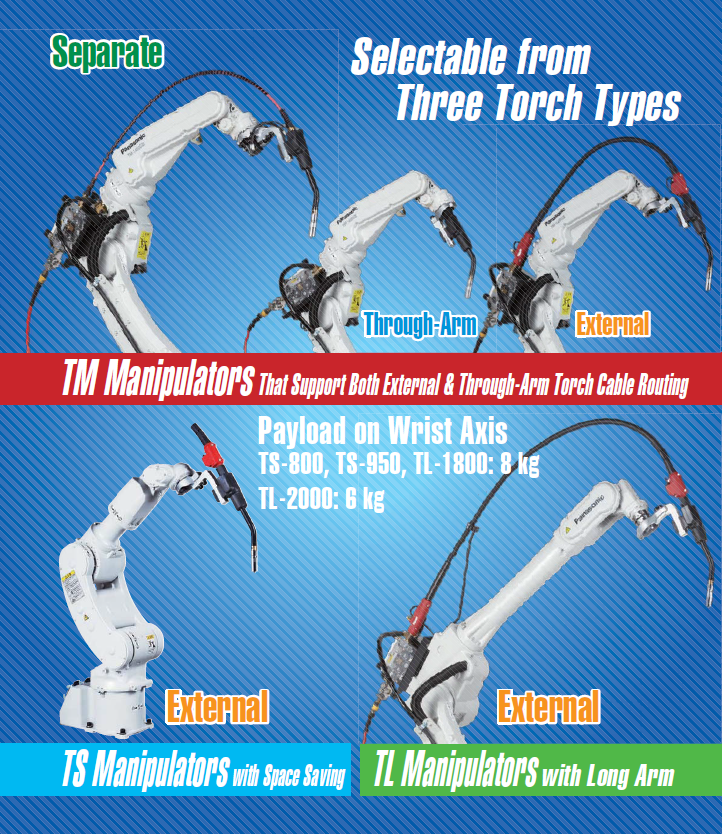

This welding robot series features an externally or internally mounted torch cable, and a high resolution encoder with a highly rigid arm.

Revolutionary new type of arc welding robot with advantages of both Through-Arm Type and External Type.

“Weld Navigation” allows easy parameter setting, Easy setting with Teach Pendant. Swivel rack in the case makes maintenance easy and saves space. Cables with connectors on both ends reduce Cable exchange time.

Description

TM G3 Series

Combination with Full Digital Welding Power Source Achieve Stable and High Quality Welding

Manipulator General Specifications

Model TM-1100 TM-1400 TM-1600 TM-1800 TM-2000
Type Short Arm Standard Arm Middle Arm Long Arm Long Arm
Structure 6 axis articulated
Payload 6kg 4kg 6kg
Maximum Reach 1163mm 1437mm 1639mm 1809mm 2011mm
Minimum Reach 418mm 404mm 513mm 430mm 550mm
Working Range 745mm 1033mm 1126mm 1379mm 1461mm
Max Motion Speed RT 225°/s 210°/s 195°/s
UA 225°/s 210°/s 197°/s
FA 225°/s 215°/s 205°/s
RW 425°/s 425°/s 425°/s
BW 425°/s 425°/s 425°/s
TW 629°/s 629°/s 629°/s
Position Repeatability ±0.08mm ±0.10mm
Motors Total Power 3400W 4700W
Brakes All axes
Mounting Floor/Ceiling
Weight 156kg 170kg 180kg 215kg 217kg

View Compatible Welding Power Source

CO2/MAG/MIG

https://www.engrgaids.com/product/350vr1/

AC/DC TIG

https://www.engrgaids.com/product/300bp4/

DC TIG

https://www.engrgaids.com/product/300bz3/
