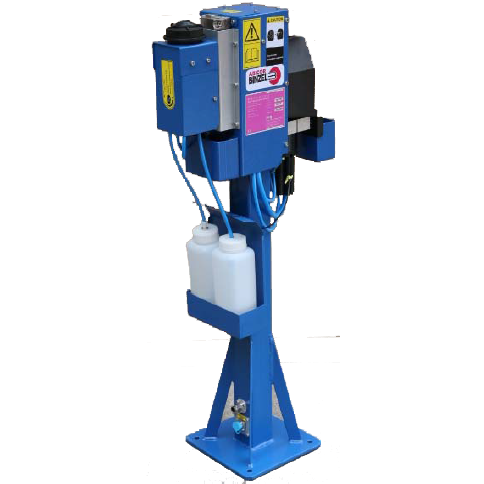

Torch Cleaning Station (TCS)

Description

Technical Data

Pneumatic Equipment

• Nominal pressure 6 bar
• Nominal flow approx. 500 l/min
• operating pressure 6 – 8 bar
• Nominal rotational speed 800 rpm
• Max. Wire size 1.6mm (by 6 bar air pressure)
• Weight 20kg
• Ambient temperature +5° to +50°C
• Protection IP 21

Electrical Equipment

• 5/2 way valves
• Rated voltage 24 V DC
• Power consumption 4.5 W (EACU)
• Relative operating time Continuous duty
• Inductive proximity switch, normally-open contact, (npn)
• Operating voltage 10 to 30 V DC
• Permitted residual ripple Vpp < 10%
• Continuous current Max. 200 mA
• Current consumption Approx. 4 mA (24 V)
• Voltage drop Approx 1.2 V (200 mA)
