hi max welder

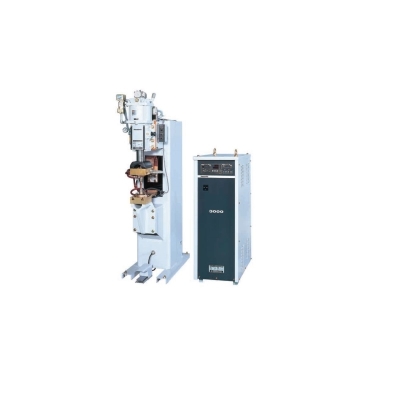

Panasonic High Speed Hi-Max Welder Series

Add to cart

Panasonic High Speed Hi-Max Welder Series

Key Features

Can double the repeat welding speed compared with that of conventional capacitor discharge models
Recently developed welding capacitors have virtually unlimited service life
Designed for repetitive and fast cycling operations
Equipped with the ability to adjust and dress electrodes
Digital setting used throughout to simplify operation
Supplied with monitor for charging voltage
Compact and integrated configuration

Add to Quote List

Description
Reviews 0

Description

Models and Ratings

Model		Method	Input	Rated Input	Output	Capacity of Capacitor	Electride Max. Pressure	Stroke	Electrode Size	Throat Dimensions	Cooling Water
			Phase/Hz	kVA	Ws	μF	kN	mm	Dia. X Length mm	(W x D)mm	lit/min
YG-A50	ES1	Spot	1ф 50/60Hz	4.5	1500	13440	4.9	20·60	ф16 x 50 Taper 1/5	200 x 400	2 or more
	EJ1	Projection								175 x 300
	EC1	Spot/Projection								174 x 400
YG-C00	ES1	Spot	1ф 50/60Hz	7	3000	26880	9.8	20·80	ф20 x 50 Taper 1/5	200 x 425	3 or more
	EJ1	Projection								200 x 300
	EC1	Spot/Projection								165 x 425

Dimensions and Welding Capacities

Model		Dimensions (mm)			Weight	Capacity by material (mm x pcs)
		Width	Depth	Height	Kg	Aluminum	Brass	Mild Steel Stainless Steel
YG-A50	ES1	600	880	1650	300	1.2 x 2	1.2 x 2	1.2 x 2
	EJ1
	EC1
YG-C00	ES1					1.5 x 2	1.6 x 2	1.6 x 2
	EJ1
	EC1
	main unit	561	1013	1780	550
	power source	410	682	1150	230
