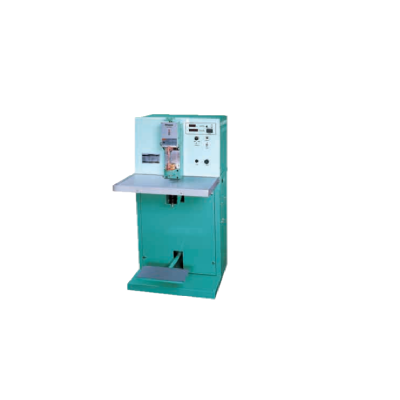

Panasonic Hi-Max Console Type

Panasonic Hi-Max Console Type

Key Features

  • Digital Setting of Charging Voltage

  • Built-in Pre-set Counter

  • Welding Current Run Confirmation Buzzer


Models and Ratings

Model Input Rated Input Output Capacity of Capacitor Max. Pressure Stroke Electrode
dia. x Length
Throat Dimensions
(W x D)
Welding Capacity Aluminum W x D x H Weight
Phase/Hz kVA Ws μF kN mm mm mm mm mm Kg
(Foot Press Type)

1 500 9120 0.44 15 ф8 x 30ℓ
Taper 1/10
80 x 80 Max.
550 x 680 x 1165 135
(Air Press Type)
700 x 680 x 1165
