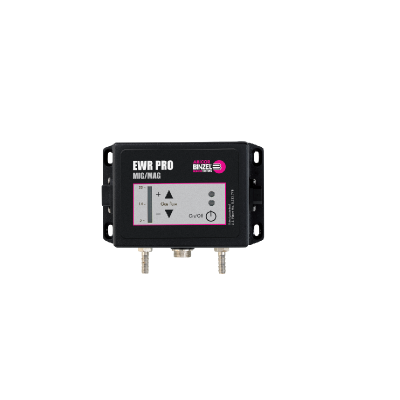

Electronic Welding Regulator (EWR)

Description

Technical Data

Weight: approx. 1.3kg
Measurements: 118x148x58 mm
Electrical connection: 24VDC, 450 mA – 750 mA
Outgoing idle flow: 0.2 – 2.0 bar: 5.0 – 23.0 l/min
Flow rate: 5.0 – 30.0 l/min, 10.6 – 63.0 cfh

Ingoing pressure <-> Outgoing pressure:

• 2 – 6 bar <-> to 0.6 bar
• 3 – 6 bar <-> to 1.2 bar
• 4 – 6 bar <-> to 2.0 bar

(If pressure is below 1 bar, EWR shuts off)

Working range of measuring
shunts:
Shunt <-> Working range

• 150 A <-> 45 – 150 A
• 300 A <-> 90 – 300 A
• 500 A <-> 150 – 500 A
