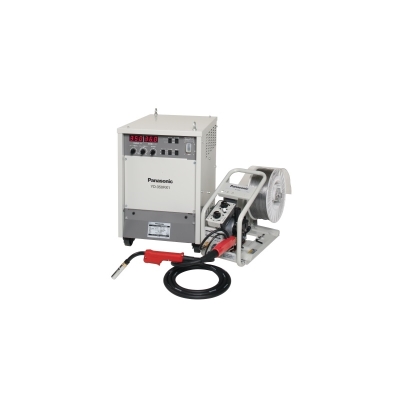

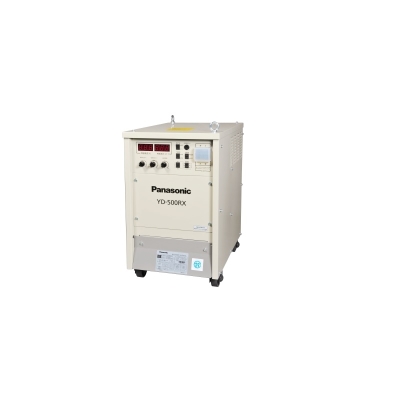

YD350/500RX1

Features

Welding Power Source		YD-350RX1	YD-500RX1
Rated Input Voltage	V	380 or 415
Phase	–	3
Rated Frequency	Hz	50/60
Rated Input Capacity	kVA/ kW	13.1/ 12.6	23.1/ 22.2
Output Current Adjustable Range	A	50 to 430	60 to 550
Output Voltage Adjustable Range	V	16.5 to 35.5	17 to 41.5
Rated Duty Cycle	%	60	100
Applicable Wire Diameter	mm	0.8/0.9/1.0/1.2	1.0/1.2/1.4/1.6
Applicable Welding Wire	–	Mild Steel
Dimensions	(W x D x H)	380 x 545 x 570	380 x 545 x 635
Weight	kg	52	60
