Arc sensitivity is selectable by changing the tap of a reactor. 3 kinds of applicable wire diameters are available. Secondary short circuit protection is the standard function. Crater voltage and crater current control are possible. Fresh tip treatment and burn back time control are realized.

  • KR2 series uses a special control circuit to achieve low spatter welding in short circuit and spray transfer in C02/MAG welding.

  • The arc starting circuit allows virtually 100% arc start success in any operating mode which makes it possible to use this model in both semi-automatic or automatic welding equipment.

  • In simplified unitary mode, the welding current setting on the remote controller automatically determines the corresponding

    welding voltage.

  • Best Selling models with Outstanding Performance and a Wide Application Capability

  • Good Welding Performance

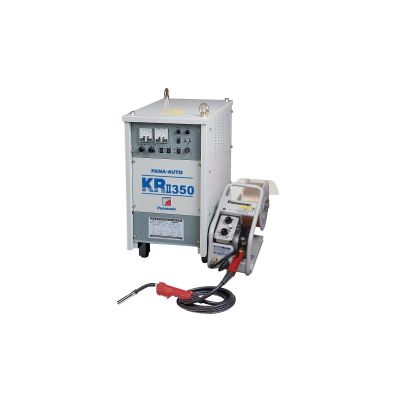

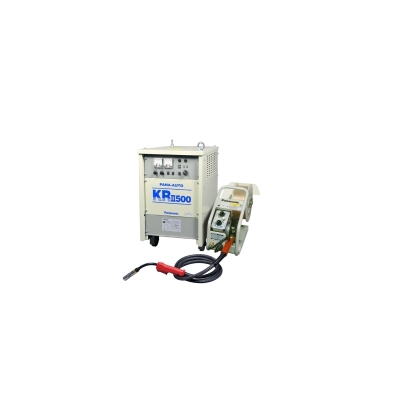

Welding Power Source YD-350KR2 YD-500KR2
Rated Input Voltage V 380
Phase 3
Rated Frequency Hz 50/60
Rate Input Capacity kVA/kW 18.1/16.1 31.9/28.1
Output Current Adjustable Range A 60 to 350 60 to 500
Output Voltage Adjustable Range V 16 to 31.5 17 to 39
Rated Duty Cycle % 50 60
Applicable Wire Diameter mm 0.8/1.0/1.2 1.2/1.4/1.6
Applicable Welding Mild Steel
Dimensions (W x D x H) 376 x 675 x 747 436 x 675 x 762
Weight kg 117 158
