• High arc starting success rate, fast cutting speed, small cutting width rate, good cut surface smoothness, less slag hanging on the surface, and small sheet deformation

  • Equipped with cutting navigation function, according to the selected material/plate thickness, the appropriate specification is automatically determined

  • The electrode life detection function can automatically prompt the electrode replacement time according to the use of the cutting torch to prevent excessive use of the electrode and the cutting nozzle

  • Pressure sensing function, the system sets the pressure range, and alarms when the set range is exceeded

  • With plasma arc gouging function, the gouging ability is equivalent to a carbon rod with a diameter of 6.5mm

  • The cabinet is designed to be stacked in multiple layers to reduce inventory area

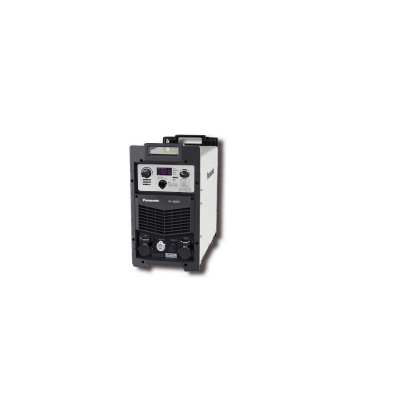

Model YP-060PF3 YP-100PF3
Rated Input Voltage V AC380(±20%)
No. of Phases 3
Rated Frequency Hz 50/60
Rated Input kVA 9.81 (Cutting)/
11.32 (Gouging)
17.67 (Cutting)/
19.82 (Gouging)
kW 7.27 (Cutting)/
8.48 (Gouging)
13.87 (Cutting)/
15.95 (Gouging)
Maximum no-load Voltage V 295 300
Rated Output Current A 60 100
Rated Output Voltage V 104 (Cutting)
124 (Gouging)
120 (Cutting)
140 (Gouging)
Rated Duty Cycle % 100 60
Output Current A 15 ~ 60 15 ~ 100
Control Process IGBT Inverter
Power Source Cooling Method Forced Cooling
Enclosure Protection Class IP21S
Insulation Grade Main Transformer 130°C (Reactor 180°C)
Electromagnetic Compatibility Classification A
Dimension (W x D x H) mm 290 x 606 x 559
Weight kg 43 48
